OGN

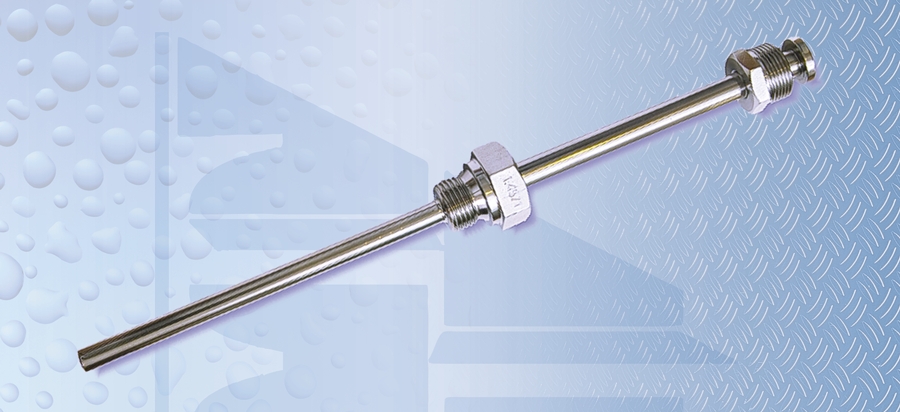

OGN type thermowell (equivalent of TOPGN type, also called "cooling neck") is offered in the lengths: 100, 160, 250, 400 mm (or others on request).
The thermowell allows to mount temperature sensors in pipelines where tightness during measurement is required.
It can be equipped with connection head, eg. of type B and measuring insert to be put in.

Ordering:

When ordering please give thermowell type, material, immersion length L and the process thread size.

Example:

OGN/ 1.4571/ 100 mm/ G1/2"

OGN

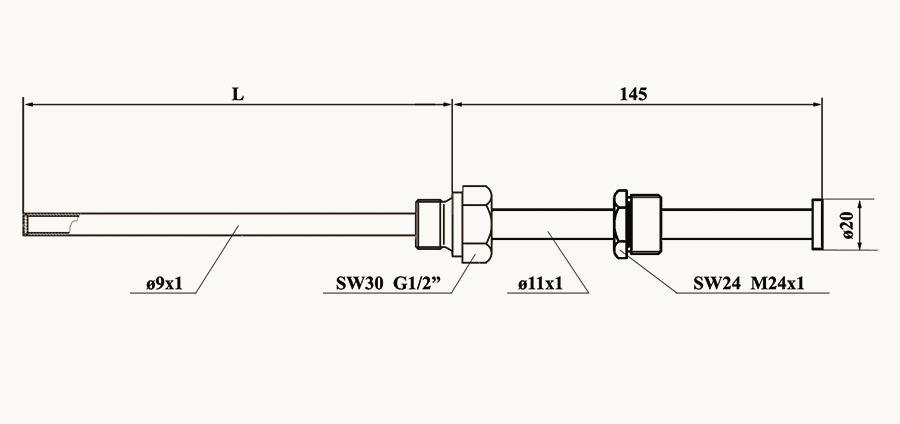

Dimensions:
